Sadev SLR82-14

Categorie:

Beschrijving

Price on request.

Get in touch for more information!

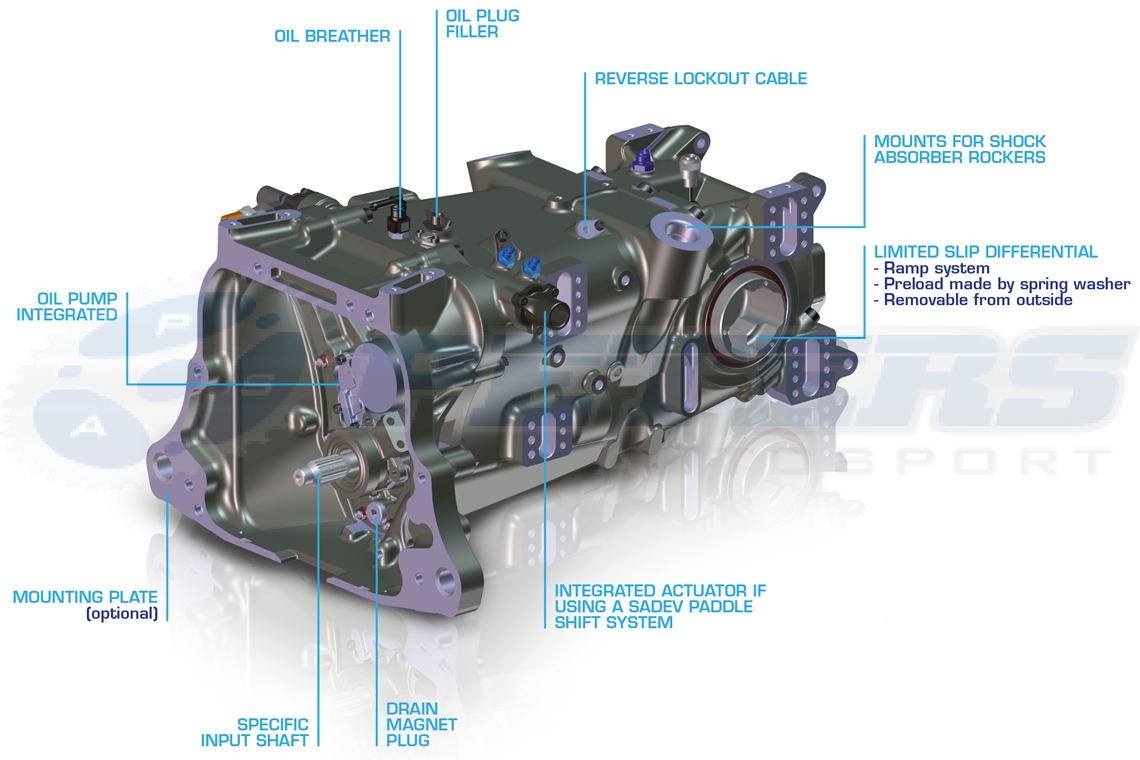

Sadev SLR82-14

TECHNICAL SPECS

  • 6 speed sequential gearbox + 1 reverse gear
  • Manual sequential gear selection (semi-auto optional)
  • Bevel gear ratio : 9×30 or 8×31
  • The bevel gear is cut and grinded in house on our CNC units
  • Wide range of ratios available
  • Straight cut gears
  • Dog ring gear engagement
  • Interchangeable gear ratios
  • High strength carburizing steel
  • Gear teeth grinded with optimized profile
  • Shot penning on internal parts
  • Specific input shaft
  • Hydraulic clutch bearing (optional)
  • Limited slip differential (free differential optional)
  • Ramp and plate system – 3 discs type
  • Preload made by spring washer
  • Wide range of ramp plates available
  • Contactless gear position sensor
  • Splash lubrication system
  • Oil pump integrated
  • Oil suction screen
  • Painted AS7G aluminum casings
  • Weight (input shaft included) : 48 kg – 105 lbs
